Non-Woven Machines

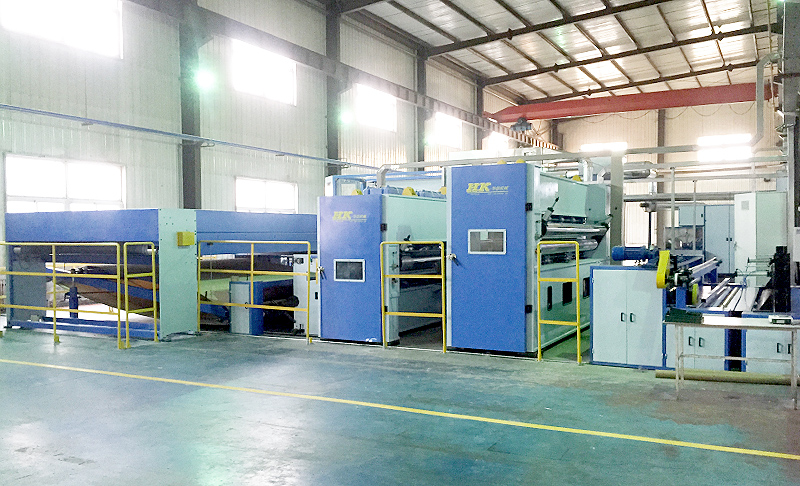

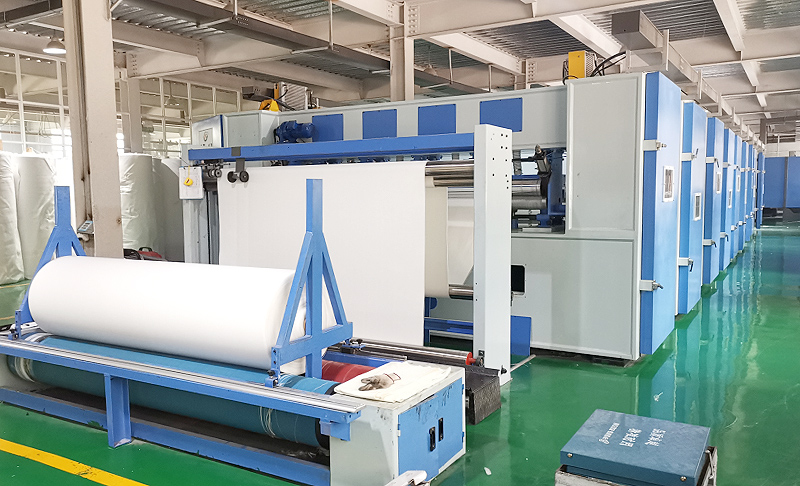

NON-WOVEN PRODUCTION LINE FOR VISCOSE THICK FELT TYPE MAIN PARAMETER NOTE LYBG103-360 carding output width 3000mm available for the materials of PSF/PHT/PPF/PPTA/       NYLON/VISCOSE FIBRE (D1.5~6.0mm/L38.0~76.0mm) lapping output width 3600mm finished products width 3200mm material weight 80~2800g/m² production speed 0.5~6 m/min production output 300kg/h power capacity 283kw Production Line Configuration NO. MACHINERY TYPE QUANTITY NOTE 1 […]

NON-WOVEN PRODUCTION LINE FOR FILTERING MATERIALS TYPE MAIN PARAMETER NOTE LYBG103 carding output width 2000mm available for the materials of PSF/PHT/PPF/PPTA/NYLON (D1.5~6.0mm/L38.0~76.0mm) lapping output width 2600mm finished products width 2300mm material weight 80~800g/m² production speed 0.5~6 m/min production output 250~350kg/h power capacity 382kw Production Line Configuration NO. MACHINERY TYPE QUANTITY NOTE 1 Bale Opener CYLKB-1300

NON-WOVEN PRODUCTION LINE FOR PU BASE FABRIC TYPE MAIN PARAMETER NOTE LYBG103 carding output width 2500mm available for the materials of PSF/PHT/PPF/PPTA/NYLON (D1.5~10.0mm/L38.0~76.0mm) lapping output width 4000mm finished products width 3600mm material weight 150~2000g/m² production speed 0.5~6 m/min production output 500kg/h power capacity 184kw Production Line Configuration  NO. MACHINERY TYPE QUANTITY NOTE 1 Bale Opener

NON-WOVEN PRODUCTION LINE FOR GEOTEXTILE TYPE MAIN PARAMETER NOTE LYBG101 carding output width 2500mm available for the materials of PSF/PHT/PPF/PPTA/NYLON (D1.5~6.0mm/L38.0~76.0mm) lapping output width 4800mm finished products width 4600mm material weight 80~800g/m² production speed 0.5~6 m/min production output 250~350kg/h power capacity 162kw calendering (appr.80kw) not included Production Line Configuration  NO. MACHINERY TYPE QUANTITY NOTE 1

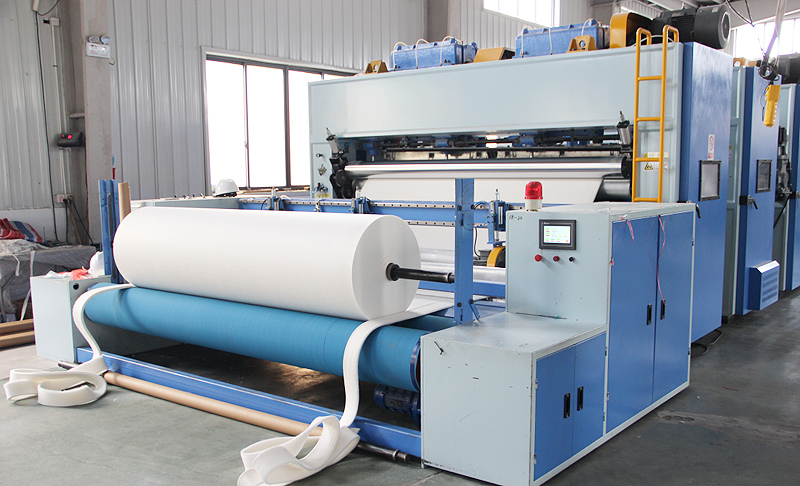

CUTTING & WINDING MACHINE TYPE SPECIFICATION NOTE YBG401 cutting width 2600mm 4000mm 6000mm for the light-weight material roll diameter 320mm 350mm 400mm power 0.75kw 1.5kw 2.2kw material weight 50~500g/㎡ speed 1.5~8m/min circular knives three longitudinal knives   + one latitudinal knife CUTTING & WINDING MACHINE TYPE SPECIFICATION NOTE YBG408 cutting width 2600mm 3800mm 5200mm for the

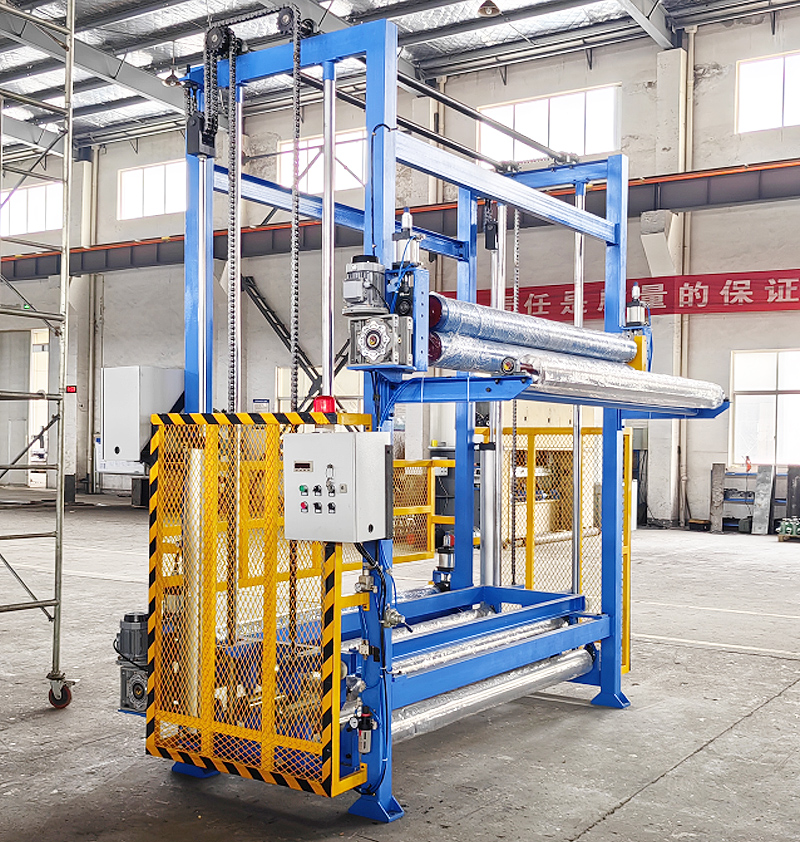

STORAGE RACK TYPE SPECIFICATION  NOTE YBG341 working width 4800mm no motor  drive height 2500mm it’s more specifically a fabric roll storage rack or a roll handling system. Let’s clarify its role: What is it and what does it do? Imagine you have bolts of fabric or rolls of non-woven material. You can’t just leave them

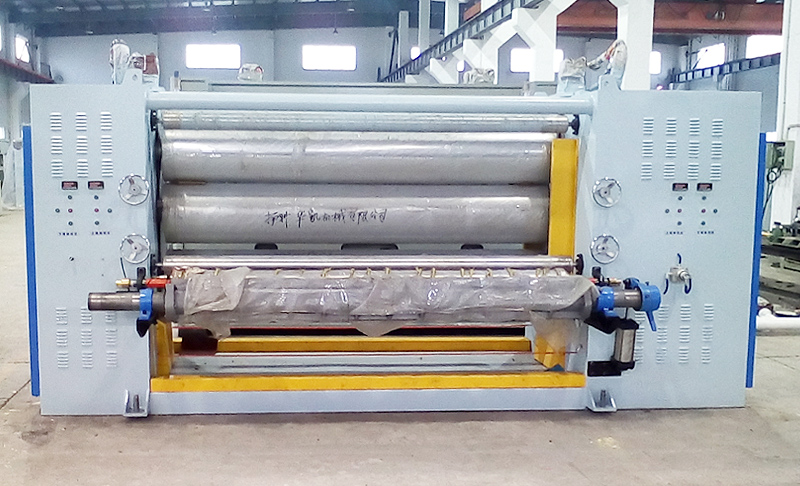

CALENDERING MACHINE TYPE SPECIFICATION  NOTE YBG321 working width 4800mm oil heating  speed 1~10m/min power 80kw What is it and what does it do? Imagine you have a piece of fabric that’s a bit rough or uneven. You might iron it to make it smoother and give it a more finished look. A calendering machine does

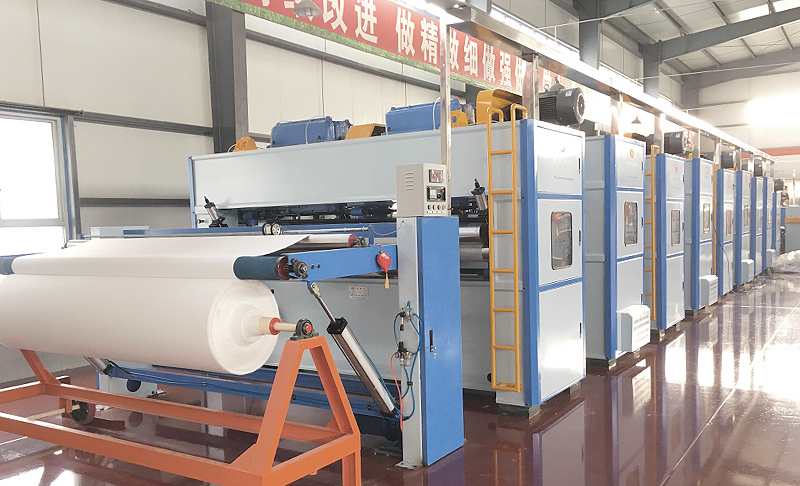

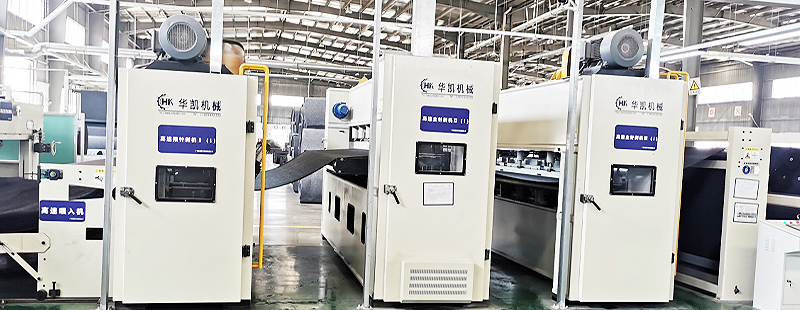

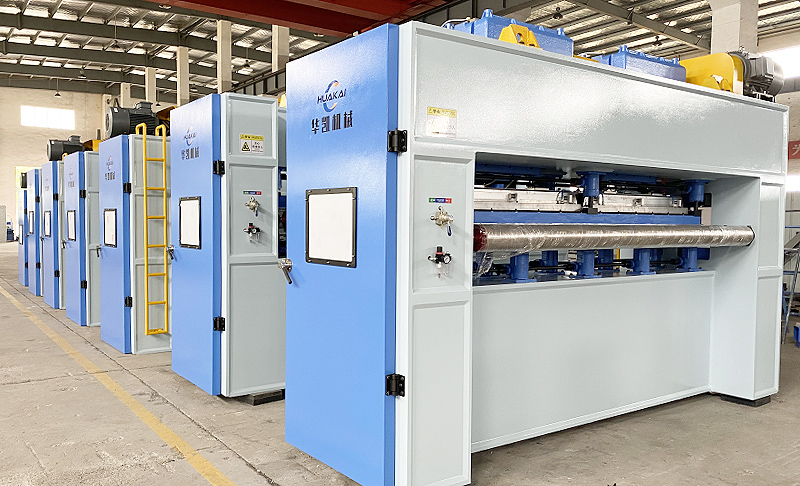

NEEDLE PUNCHING MACHINE TYPE SPECIFICATION  NOTE YGB201/211 output width 2600~8000mm high speed punching frequency 1200r/min speed 0.5~5m/min direction down stroke What is it and what does it do? Imagine you have a fluffy web of fibers, like the output from a carding machine or cross lapper. It’s a bit fragile and the fibers aren’t really

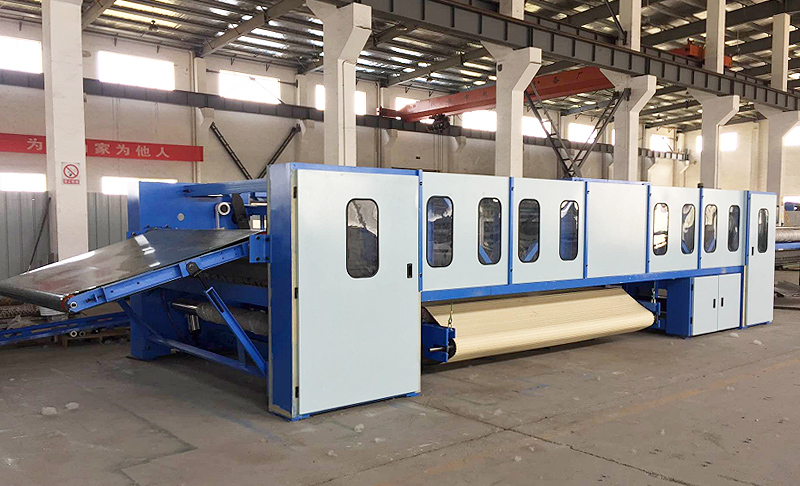

HIGH SPEED LAPPER TYPE SPECIFICATION  NOTE YBG104 input width 2000~3000mm PLC / VFD output width 2600~8000mm speed 10~80m/min power 7.5KW What is it and what does it do? Imagine you’re quickly layering sheets of fabric to build up thickness for a blanket. A high-speed lapper does something similar with a web of fibers, but at

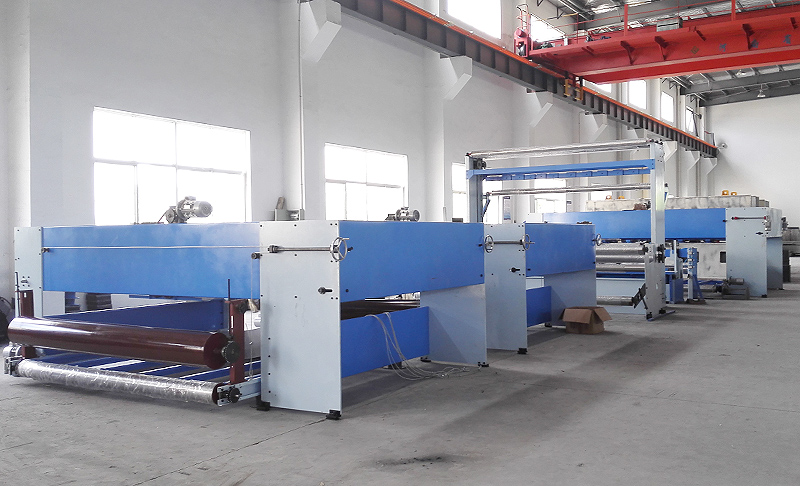

CLAMPING LAPPER TYPE SPECIFICATION  NOTE YBG101 input width 2000~3000mm PLC / VFD output width 2600~7200mm speed 10~50m/min power 5kw What is it and what does it do? Imagine you’re making a layered pastry, like a croissant. You need to repeatedly fold and layer the dough to create those delicate, flaky layers. A clamping lapper does
