NON-WOVEN PRODUCTION LINE FOR GEOTEXTILE

NON-WOVEN PRODUCTION LINE FOR GEOTEXTILE
TYPE	MAIN PARAMETER		NOTE
LYBG101	carding output width	2500mm	available for the materials of PSF/PHT/PPF/PPTA/NYLON (D1.5~6.0mm/L38.0~76.0mm)
	lapping output width	4800mm
	finished products width	4600mm
	material weight	80~800g/m²
	production speed	0.5~6 m/min
	production output	250~350kg/h
	power capacity	162kw	calendering (appr.80kw) not included

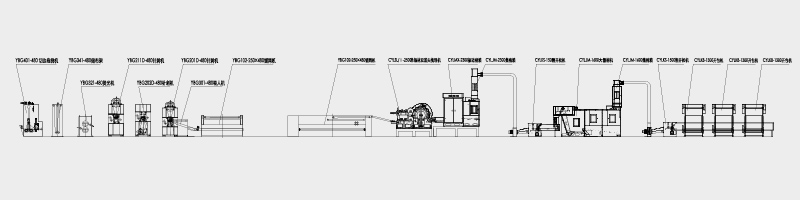

Production Line Configuration
NO.	MACHINERY	TYPE	QUANTITY	NOTE
1	Bale Opener	CYLKB-1300	3
2	Willowing Machine	CYLKS-1500	1
3	Willowing Machine	CYLJM-1600	1
4	Willowing Machine	CYLKS-1500	1
5	Cabinet Blending Hopper	CYLMX-2300	1
6	Carding Machine	CYLSL/Ⅰ-2500	1
7	Cross Lapper	YBG102-250×480	1
8	Feeding Machine	YBG301-480	1
9	Preliminary Needle Punching Machine	YBG201D-480	1
10	Needle Punching Machine	YBG202D-480	1
11	Needle Punching Machine	YBG211D-480	1
12	Storage Rack	YBG341-480	1
13	Cutting & Winding Machine	YBG401-480	1
14	Control Cabinet		1
15	Bale Opener	CYLKB-400	1	option
16	Calendering Machine	YBG321-480	1	option

Understanding the Configuration

This list outlines the machines needed, their models (for technical reference), and quantities to create a non-woven geotextile fabric. Think of it like a recipe for making geotextiles.

The Machines and Their Roles:

1. Bale Opener (CYLKB-1300 x3, CYLKB-400 x1 optional): As discussed before, this machine loosens and opens compacted bales of raw fibers (like polypropylene or polyester) making them fluffy.¹ The optional smaller bale opener might be for specialty fibers or smaller production runs.
2. Willowing Machine (CYLKS-1500 x2, CYLJM-1600 x1): These machines further open and clean the fibers after the bale opener. They remove dust, dirt, and small impurities, ensuring cleaner fiber for the next stage. Think of it as a more refined “fiber fluffing and cleaning.”
3. Cabinet Blending Hopper (CYLMX-2300 x1): This is where different types of fibers (if needed for the geotextile properties) are mixed in precise ratios. It ensures a consistent blend throughout the production run.
4. Carding Machine (CYLSL/I-2500 x1): This crucial machine aligns the opened and blended fibers into a thin, continuous web. It’s like combing the fibers to be parallel and organized.
5. Cross Lapper (YBG102-250×480 x1): The carded web is then layered back and forth to build up thickness and width, creating a thicker, wider web.² This is essential for geotextiles needing strength and substance.
6. Feeding Machine (YBG301-480 x1): This ensures a consistent and controlled flow of the layered web into the needle punching machines.
7. Preliminary Needle Punching Machine (YBG201D-480 x1): This machine starts the needle punching process, lightly entangling the fibers for better handling and cohesion.
8. Needle Punching Machines (YBG202D-480 x1, YBG211D-480 x1): These machines with barbed needles further entangle the fibers, creating a strong, felt-like fabric structure.³ Multiple needle punching machines allow for varying degrees of entanglement and fabric density.⁴
9. Storage Rack (YBG341-480 x1): This rack stores the large rolls of finished geotextile fabric.
10. Cutting & Winding Machine (YBG401-480 x1): This machine cuts the wide rolls of geotextile into smaller rolls of specific widths for packaging and sale.
11. Control Cabinet: This houses the electrical controls and systems to operate and monitor the entire production line.
12. Calendering Machine (YBG321-480 x1 optional): This machine smooths and flattens the geotextile fabric, and can be used to impart a specific surface finish. It’s often used depending on the specific end application of the geotextile.

What are Geotextiles?

Geotextiles are permeable fabrics used in civil engineering projects.⁵ They’re designed to:

• Separate: Prevent mixing of different soil types.
• Filter: Allow water to pass through while retaining soil particles.
• Reinforce: Add strength to soil structures.⁶
• Protect: Prevent erosion or damage to surfaces.

Uses of Geotextiles:

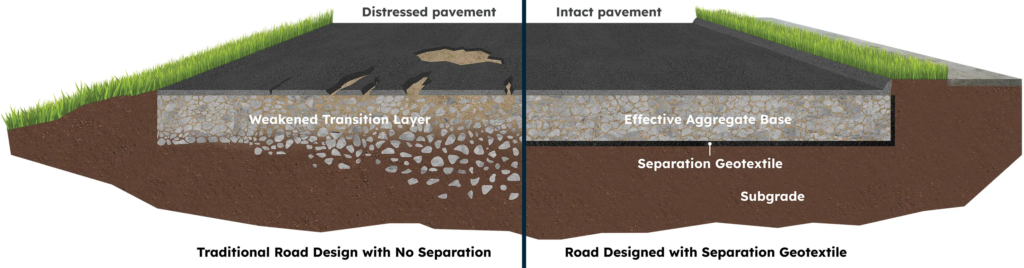

• Road Construction: Separating layers in roadbeds, improving drainage.⁷
• Drainage Systems: Filtering water in drainage ditches and pipes.
• Erosion Control: Protecting shorelines and slopes from erosion.
• Landfill Construction: Protecting liners and improving stability.

In Simple Terms:

This production line takes raw fibers, cleans them, mixes them (if needed), aligns them into a web, layers the web for thickness, and then uses needles to entangle the fibers into a strong fabric. Finally, the fabric is rolled and cut for use as geotextiles in various construction and engineering applications.

This configuration allows for a continuous and efficient production of geotextile fabrics with specific properties tailored to their end use. The optional machines provide flexibility for different product types or desired finishes.

some more details of it: to understand better in terms of power plants:

This is for informational purposes only. For medical advice or diagnosis, consult a professional.

While geotextiles aren’t directly used inside a nuclear power plant’s core or reactor, they can play a supporting role in various aspects of the facility’s construction and maintenance:

1. Foundation Support: Nuclear power plants are massive structures, and their foundations need to be incredibly stable. Geotextiles can be used to:
   • Separate: Prevent the mixing of different soil layers under the foundation, ensuring long-term stability.
   • Reinforce: Add extra strength to the soil, increasing its load-bearing capacity.¹

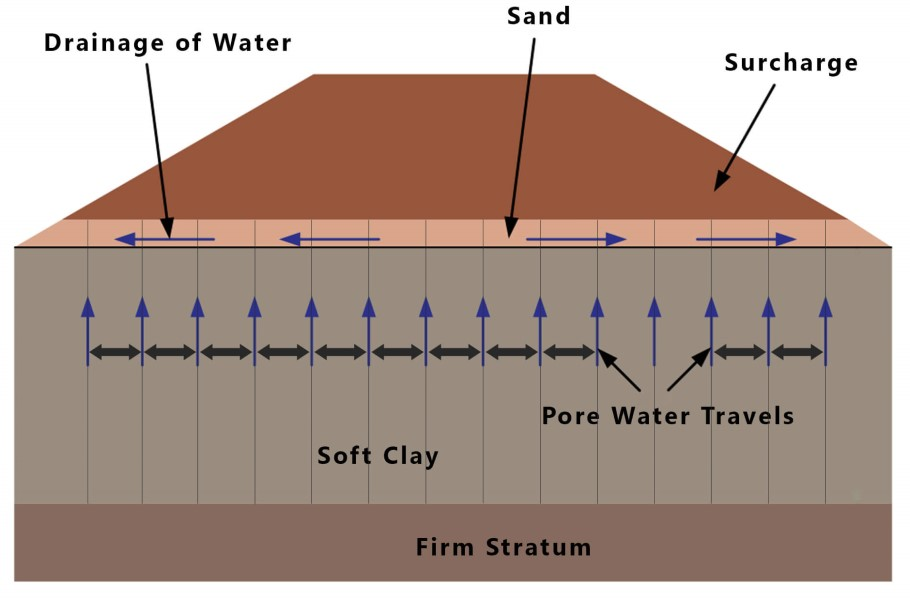

1. Drainage and Filtration: Nuclear power plants have complex drainage systems to manage water runoff and prevent flooding. Geotextiles can be used in these systems to:
   • Filter: Allow water to pass through while preventing soil particles from clogging drains.²
   • Drain: Help channel water away from critical areas.³

1. Erosion Control: The land surrounding a nuclear power plant needs to be protected from erosion, which could compromise the facility’s safety. Geotextiles can be used to:
   • Stabilize: Protect slopes and shorelines from erosion caused by wind and water.⁴
   • Vegetation Growth: Create a stable environment for vegetation to grow, further preventing erosion.⁵
2. Waste Management: Nuclear power plants generate some radioactive waste, which needs to be safely stored.⁶ Geotextiles can be used in waste storage facilities to:
   • Protect: Line landfills or storage areas, preventing leaks and contamination.⁷
   • Filter: Help manage leachate (liquid that drains from landfills).⁸

Important Considerations:

• Durability: Geotextiles used in nuclear power plant applications need to be highly durable and resistant to environmental factors like radiation, temperature extremes, and chemicals.
• Safety: The selection and installation of geotextiles must adhere to strict safety regulations and standards to ensure the long-term integrity of the facility.
• Specific Applications: The exact type and use of geotextiles will vary depending on the specific needs and design of the nuclear power plant.

In Simple Terms:

Geotextiles can be used to support the foundation, drainage, erosion control, and waste management systems of a nuclear power plant. They help ensure the long-term stability, safety, and environmental protection of the facility.

Disclaimer: This information is for educational purposes only and should not be considered professional engineering advice. The use of geotextiles in nuclear power plant applications is a complex topic that requires careful consideration of various factors and adherence to strict regulations.
